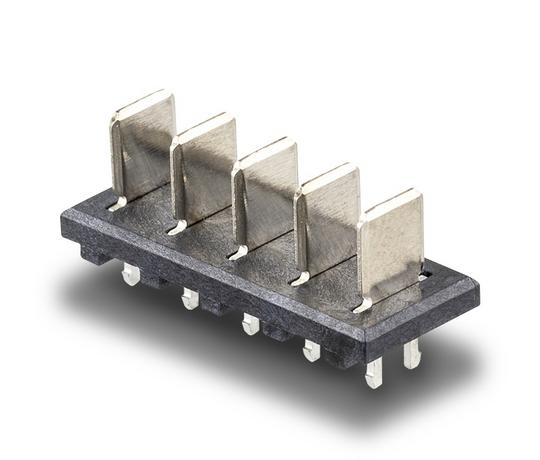

Der Platinenstecker RRC-MC20-180-10 als Gegenstecker für die RRC Standard-Batteriepacks RRC20xx.

RRC-MC20-180-10

Battery Mating Connector

  • Mating connector for standard battery packs in form factors RRC20xx
  • 10A max. charge or discharge current to battery
  • 5-pin male connectors
  • 5mm pitch
  • RoHS compatible

你需要更多的信息吗?

下载 RRC-MC20-180-10

产品数据表 RRC-MC20-180-10

Specifications

Ratings
Current10.00A max. / pin
Voltage

125.00V AC / 1min

Materials
Housing

Thermoplastic High
Temperature, UL 94V-0, black

Contacts

Copper Alloy

Plating

80μm Nickel on contact area
100μm Matte-Tin on solder tails

Operating Temperature-55°C to +105°C
Electrical Requirements
Contact Resistance0.03Ohm max.
Insulation Resistance0.10Ohm min. at 500VDC/2min
Dielectric withstanding voltage500.00V
Mechanical Requirements
Contact Retention Force500g min. / pin
Durability5000 cycles
Dimensions (LxWxH)

25.00mm x 11.70mm x 9.80mm

Weight3g
Physical Requirements
Solder Temperature

245°C ± 5°C

Immersion Period

3 ± 0.50sec

Regulatory Approvals

RoHS


RRC-MC11-90-2
RRC part number210518
PCB mounting180°
Packaging
24 connectors per tube
110 tubes per carton
