RRC2024

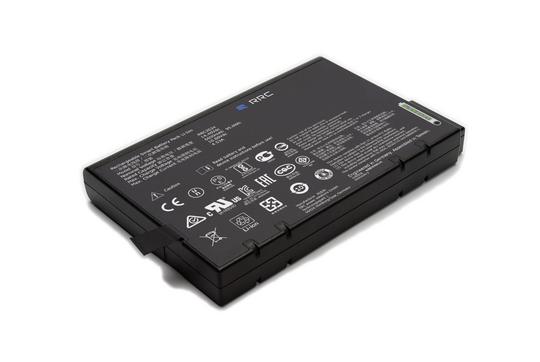

Standard battery pack RRC2024 (4S3P)
with 14.40V / 6.60Ah / 95.00Wh
- Worldwide approvals and certification of safety standards
- No development costs, fast time-to-market
- Smart batteries with numerous features according to the SMBus specification
- Integrated LED State of Charge (SoC) indicator
- State-of-the-art lithium-ion cells with the market’s highest energy density
- High discharge performance
- JEITA charging profile optimization
- Numerous and redundant safety features, e.g.:
- CUV (Cell Under Voltage): protection against deep discharge
- COV (Cell Over Voltage): protection against over charge
- OTC (Over Temperature in Charge): Protection against overheating while charging
- OTD (Over Temperature in Discharge): Protection against overheating during discharging
- Increased ESD protection up to 8kV
- SHA-1 cryptosystem to prevent plagiarism
- Life expectancy: Up to 80% of initial capacity after 800 cycles
你需要更多的信息吗？
产品数据表 RRC2024
| General | |
|---|---|
| Delivery status (battery capacity) | <30% |
Compliance information | IEC62133 / CE / UL2054 / FCC / PSE / KC / Gost / EAC / CQC / RCM / BIS / TISI / BSMI / UN38.3 / RoHS / REACH |
| Operating temperature | 0°C to 45°C (charge) -20°C to 60°C (discharge) |
Storage temperature | -20°C to 50°C max. |
| Electrical Parameters | |
|---|---|
Nominal voltage | 14.40V |
Nominal capacity | 6.60Ah |
Initial impedance | <150mΩ @ 1kHz at 25°C |
Max. charge current | 4.53A |
Max. charge voltage | 16.80V |
Max discharge current | 10.00A |
| Battery Dimensions | |
|---|---|
Length | 167.20mm +0.50/-0.50 |
Width | 107.20mm +0.40/-0.30 |
Thickness | 21.51mm +0.30/-0.50 |
Weight | 600g |
Contacts | +, D, C, T, - |
| Ingress protection | IP40 |
| Safety Parameters PCM | |
|---|---|
Overcharge detection voltage / cell | 4.30V |
Overdischarge detection voltage / cell | 2.50V |
Overcharge detection current | 6.45A |
Overdischarge detection current | 11.00A |
POWERPAQ RRC2024 is approved worldwide
